0.2mm-6mm FPC Flexible Circuit Board PCB Cable Assembly

Ask Lasest Price
Brand Name :	Lunfeng
Model Number :	FPC002
Certification :	ISO9001:2015
Payment Terms :	T/T, Western Union
Supply Ability :	500000 Piece/Pieces per Month
Delivery Time :	7-25 working days, To be negotiated

Add to Cart

Product Details
Company Profile

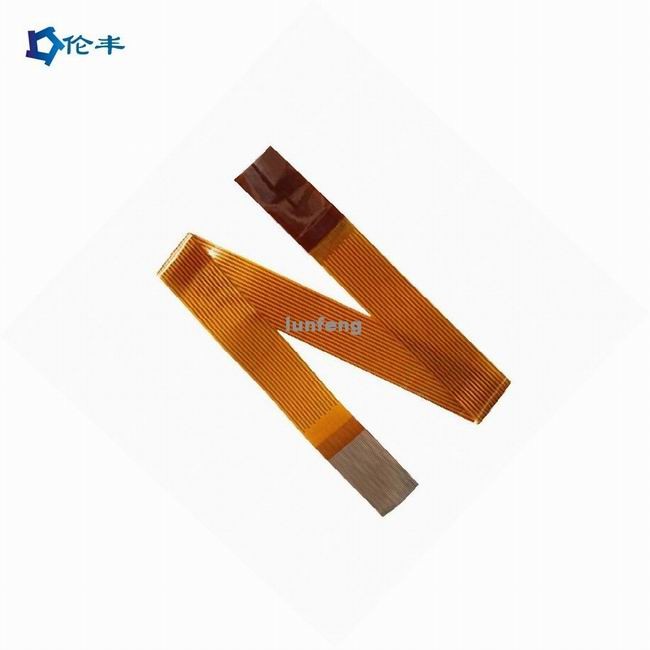

0.2mm-6mm FPC Flexible Circuit Board PCB Cable Assembly

FPC Flexible Circuit Board flex circuit board

Applications of Flexible Printed Circuits

Flexible Circuit overlay

Flexible printed circuits can be used for various applications. For example, they can be used for static applications and dynamic flexing. For the case of static applications, the design of the circuit board is for minimal flexing. It is during the installation that the circuit is flexed. For dynamic flexing, the circuit boards are for regular flexing. Here are a number of the applications of these circuit boards: robots, printers, and cell phones. It is also essential to point out that flexible circuit boards are largely used in applications that require high precision and regular flexing. Examples of these applications include: cameras, satellites, fuel pumps, antilock brakes, avionics, motion systems, medical devices, airbag systems, and manufacturing devices.

FPC cable ( Flexible Printed Circuit ) Specifications
Layer	1-6layer
FPC size(max/min)	Min: 10x45mm Max:250x1200mm
Thickness	0.050mm—0.2mm
Through Hole diameter(Max)	6.5mm
Through hole size(min)	0.2mm
Through hole tolerance	±0.025mm
Hole copper thickness	Min8μm Max 38μm
Min line width/space	0.04/0.04 mm
Etching Tolerance	±20%
The accuracy of the pattern on the hole	±2mil
Punching size(max)	φ3.175mm
Punching size(min)	φ2.0mm
Punching aperture Thickness(Max)	0.2mm
Thermosetting inks tolerance	±0.2mm
Green oil(Min)	0.1mm
Solder pad(min)	8mil*8mil
Solder pad distance(Min)	8mil
tolerance(Min)	±0.1mm
Available Laminates Material	Pl. PET. FR4-Pl
Copper foil thickness	12um, 18um, 35um, 70um

FAQ:

Q1: Are you a factory or trade company?
A : Lunfeng is an manufacturer/factory. We pecialize in memrbane switch for 26 years, touch panel for 10 years.

Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture touch panel for someone else without
your permission. NDA is acceptable.

Q3 : Can you copy membrane switch/ graphic overlay / capacitive or resistive touch panel samples without file?
A : Yes, we can clone membrane switch/ graphic overlay / touch panel according to your samples.

Q4 : What payment do you accept ?
A : TT/ Western Union.

Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.

Q6 : How about the MOQ?
A : NO MOQ.

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
