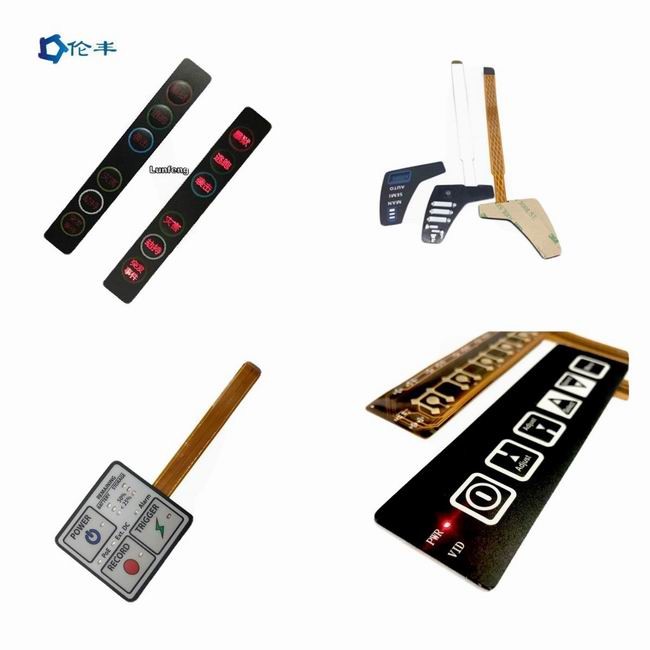

    Waterproof Led Membrane Switch Metal Domes Tactile Back Light LGF Design

    Ask Lasest Price
    Brand Name : Lunfeng
    Model Number : BMS-023
    Certification : ISO9001:2015
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 500000 Piece/Pieces per Month
    Delivery Time : 7-25 working days, To be negotiated
    • Product Details
    • Company Profile

    Waterproof Led Membrane Switch Metal Domes Tactile Back Light LGF Design

    tactile Back Light Membrane Switch with water-proof and LGF design


    Applications of Backlit Membrane Switches

    Lunfeng's custom-designed membrane switches and membrane switch keypads. Membrane switches are used in many industries. Niceone-tech summarizes several best membrane switch industries:


    Medical Equipment and laboratories are the major markets. Lunfeng provides customized membrane switches with complex requirements for many European and American manufacturers. In the medical environment, based on the standard membrane keypad, the materials sometimes have antibacterial effects and easy cleaning characteristics. At the same time Niceone-tech applies backlit and glue technology to the membrane switch. It can even be produced using digital printing.


    Industrial Controls: Because industrial equipment is more demanding moisture resistance and UV resistance, so the product's waterproof requirements and UV resistance performance requirements are relatively high. The choice of materials can refer to the membrane switch design guide (to change into go This page), I believe that the materials compiled by Niceone-tech can help you.


    Health & Fitness Equipment: Because it is often corroded by sweat, salt and moisture, the material must be resistant to corrosion. Membrane switches are often used in treadmills. Using membrane switches to optimize performance and control is very important for fitness personnel


    Advantages of LGF Lighting

    LGF lights are available in almost any shape. Their versatility and flexibility make them the top choice for backlit switches.
    LGF membrane switch is very useful for compact and thin devices.
    It ensures minimal to almost no impact on the tactility of the switch buttons of the membrane.
    With LGF switch, you can enjoy uniform lighting across one or more areas within a switch.



    Our Advantage:

    We Focus in membrane switch and related items.
    Strong R&D capability
    Stable in quality
    Competitive price
    Short Lead time for samples and Mass production
    Whole solution design available

    Applications:

    * home appliances and device
    * Security Protection systems with Cipher Code
    * Various industry control keypad panel
    * consumer electronics and 3C item
    * Thrapy medical system and device
    Various automtic machine control keypad


    ItemsSilver Printed CircuitCopper Etched FPC Circuit
    MaterialPET (Polyester)Copper
    ConductorPrinted silverCopper
    Contact FingersSilver and CarbonGold plated
    Contact Buttons PadsSilverGold plated
    Life & Reliabilitynormalgood
    Stabilitynormalgood
    ResistancelowVery low
    Costlowhigh
    Lead Time2-3 days7-10 days
    Pitch0.5mm (not suggested), 1.0mm, 1.27mm, 2.54mm0.5mm, 1.0mm, 1.27mm, 2.54mm


    1.Electrical Properties

    Membrane Switch

    Electrical Level:

    35V(DC), 100mA,1W

    Contact Resistance:

    10Ω~500 Ω

    Insulation Resistance:

    100MΩ/100V

    Dielectrics Voltage-resistance:

    250VRms(50~60Hz 1min)

    Chattering Time:

    ≤ 5ms

    Life Time:

    Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000

    Tail Folding:

    R>1,180



    2.Mechanical Properties


    Operating Force:

    Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)

    Switch Stroke:

    Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm



    3.Environmental and Storage Conditions


    Operation Temperature:

    -40°C ~ +80°C

    Storage Temperature:

    -40°C ~ +80°C

    Humidity:

    40°C, 90%~95%, 240 hours



    FAQ:


    Q1: Are you a factory or trade company?
    A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.

    Q2 : Is my switch file safe if I send it to you for manufacturing?
    A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
    your permission. NDA is acceptable.

    Q3 : Can you copy membrane switch/ graphic overlay samples without file?
    A : Yes, we can clone membrane switch/ graphic overlay according to your samples.

    Q4 : What payment do you accept ?
    A : TT/ Western Union.

    Q5 : What's your shipping way ?
    A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
    2. If you have your own forwarder, we can cooperate with them.

    Q6 : How about the MOQ?
    A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.

    Q7 : What's your main market?
    A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
