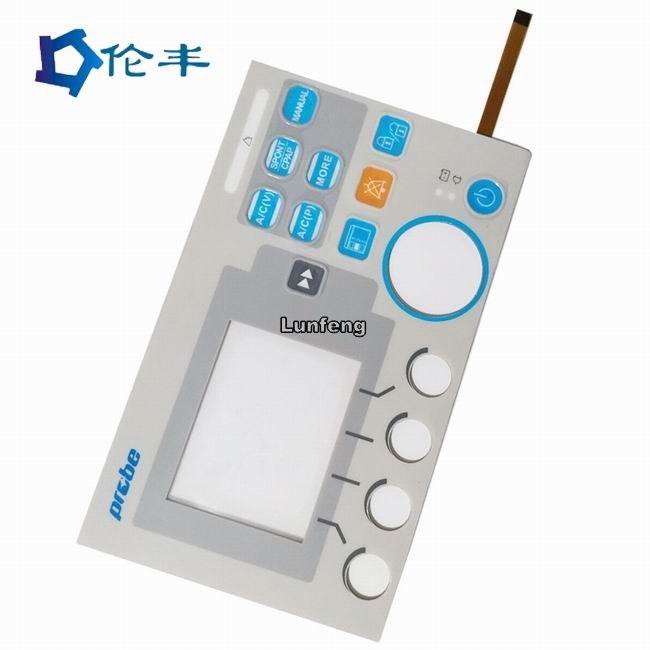

    Flex Tail FPC Membrane Switch PET V200 3M468 Membrane Control Panel

    Ask Lasest Price
    Brand Name : Lunfeng
    Model Number : FPCMS-003
    Certification : ISO9001:2015
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 500000 Piece/Pieces per Month
    Delivery Time : 7-25 working days, To be negotiated
    • Product Details
    • Company Profile

    Flex Tail FPC Membrane Switch PET V200 3M468 Membrane Control Panel

    FPC Membrane Switch with flex tail for control system


    What are the functions and advantages of membrane keypads?

    The reason why the membrane switch is widely used is because of some very superior performances. It can fulfill various requirements of users, from industrial equipment to medical equipment.


    Moisture-proof performance: Because the membrane keypad uses a good pressure-sensitive adhesive layer and the stable performance of Polyester, Lexan, Polycarbonate one of the materials together. Membrane switch can be designed to meet NEMA 4 and IP 67, some products can even reach IP68.


    Thin: It is not easy to be invaded by dust, and secondly, it reduces the space of the product.


    Our Advantage:


    We Focus in membrane switch and related items.
    Strong R&D capability
    Stable in quality
    Competitive price
    Short Lead time for samples and Mass production
    Whole solution design available


    Applications:


    * home appliances and device
    * Security Protection systems with Cipher Code
    * Various industry control keypad panel
    * consumer electronics and 3C item
    * Thrapy medical system and device
    Various automtic machine control keypad


    1.Electrical Properties

    Membrane Switch

    Electrical Level:

    35V(DC), 100mA,1W

    Contact Resistance:

    10Ω~500 Ω

    Insulation Resistance:

    100MΩ/100V

    Dielectrics Voltage-resistance:

    250VRms(50~60Hz 1min)

    Chattering Time:

    ≤ 5ms

    Life Time:

    Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000

    Tail Folding:

    R>1,180



    2.Mechanical Properties


    Operating Force:

    Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)

    Switch Stroke:

    Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm



    3.Environmental and Storage Conditions


    Operation Temperature:

    -40°C ~ +80°C

    Storage Temperature:

    -40°C ~ +80°C

    Humidity:

    40°C, 90%~95%, 240 hours


    FAQ:


    Q1: Are you a factory or trade company?
    A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.

    Q2 : Is my switch file safe if I send it to you for manufacturing?
    A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
    your permission. NDA is acceptable.

    Q3 : Can you copy membrane switch/ graphic overlay samples without file?
    A : Yes, we can clone membrane switch/ graphic overlay according to your samples.

    Q4 : What payment do you accept ?
    A : TT/ Western Union.

    Q5 : What's your shipping way ?
    A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
    2. If you have your own forwarder, we can cooperate with them.

    Q6 : How about the MOQ?
    A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.

    Q7 : What's your main market?
    A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
