Lcd FPC Multi Touch Resistive Touch Screen 14inch Four Wire Resistive Touch Screen

Ask Lasest Price
Brand Name :	Lunfeng
Model Number :	RTP009
Certification :	ISO9001:2015
Payment Terms :	T/T, Western Union
Supply Ability :	500000 Piece/Pieces per Month
Delivery Time :	7-25 working days, To be negotiated

Add to Cart

Product Details
Company Profile

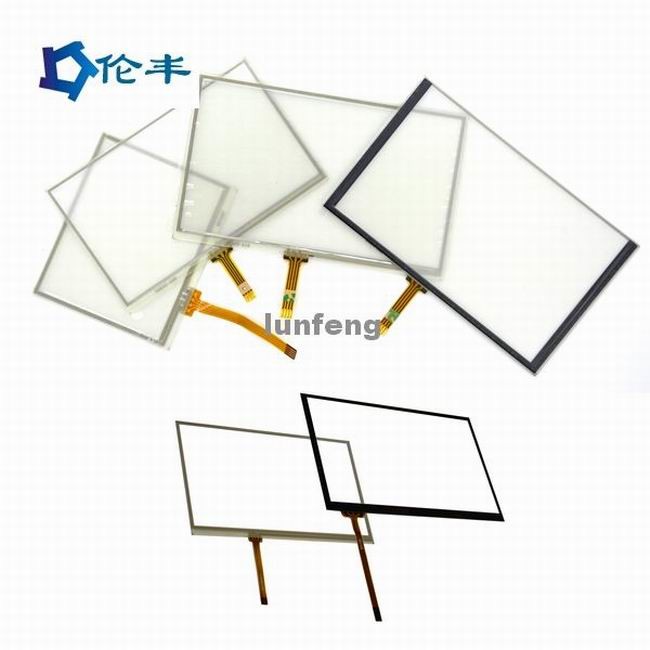

Lcd FPC Multi Touch Resistive Touch Screen 14inch Four Wire Resistive Touch Screen

Low Moq custom made Resistive Touch Panel 14 inch Touchscreen

This type of touchscreen is created out of two very thin layers of material, separated by a thin gap. The top layer is typically some type of clear poly-carbonate material, while the bottom layer is made up of a rigid material. Manufacturers typically use PET film and glass for these layers.

4-Wire Analog

In a 4-wire analog setup, both the top and bottom layers contain two electrodes called "bushbars".

These electrodes are oriented perpendicular to one another.

Electrodes on the top sheet are the positive and negative Y axis, while electrodes on the bottom are the positive and negative X axis.

Using this sort of electrical-coordinate setup, the mobile device can sense the coordinates where the two layers have come in contact.

Application:

1. Light industrial
2. Home appliances
3. Portable sport devices
4. Access control terminals
5. Portable medical devices
6. Personal computer and office

Parameter	Options & Notes
Parameter	Options & Notes
Screen Size(Diagonal inches)	PCAP Capacitive touch panel 3"-86" Resistive touch panel 4"-10.4"
Product Construction	GG / G1F / GFF / PG / FG
Integration	Tape Bonding / Optical Bonding ( OCA, OCF & LOCA )
Cover Lens
Cover Lens Thickness	0.55mm-10mm
Cover Lens Material	CS Glass, Gorilla Glass,Heat Tempered, PET, PMMA,Borosilicate, etc.
Additional Options	Silk screening, logos, cut outs, colored glass, etc.
Touch Controller & Interface
Controller Location	COB / COF
Controller Type	Silicon Works / EETI / Weida / Ilitek / Goodix / Customer Supplied
Interface	I2C, USB, RS232, UART
Operating System	Windows XP, 7-10, Linux, iOS, Android
Performance Options	2-50 touch points, palm rejection, water rejection, gloved use, gestural controls, active stylus, etc.
Product Enhancements
Optical	Anti-Glare / Anti-Reflection / Mirror Finish / Dead Front
Others	Anti-Fingerprint / Anti-Shatter Film / Hard Coat
EMI Resistance	Metal Mesh / Firmware Tuning / EMI Filters

FAQ:

Q1: Are you a factory or trade company?
A : Lunfeng is an manufacturer/factory. We pecialize in memrbane switch for 26 years, touch panel for 10 years.

Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture touch panel for someone else without
your permission. NDA is acceptable.

Q3 : Can you copy membrane switch/ graphic overlay / capacitive or resistive touch panel samples without file?
A : Yes, we can clone membrane switch/ graphic overlay / touch panel according to your samples.

Q4 : What payment do you accept ?
A : TT/ Western Union.

Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.

Q6 : How about the MOQ?
A : NO MOQ.

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
