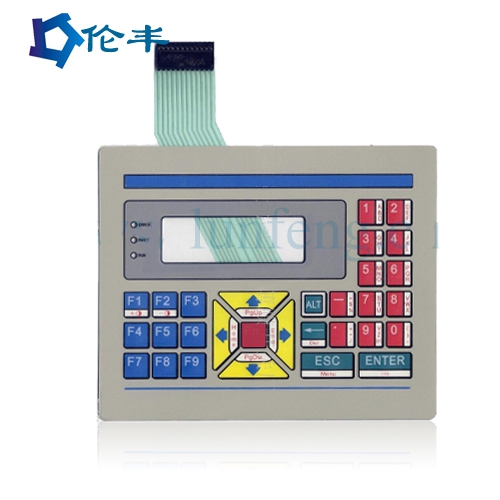

PET Membrane Switch glossy surface for Industrial Control tactile
membrane switch
What is a “Membrane Switch”?
A membrane switch is a printed electronic circuit that uses
pressure to open and close a circuit. The membrane switch circuitry
is most often screen printed using conductive inks, which are
typically made of silver, carbon, and/or graphite.
Membrane switches are part of a range of devices considered to be
user interfaces (also called operator interfaces, or man-machine
interfaces) along with display-based touch screens, and mechanical
switches such as push-button, toggle, rocker, and slide switches.
The ultimate purpose of a membrane switch is to serve as the
interface between man and machine, enabling an operator to
communicate with a piece of equipment, instrument, or machinery.
Features & benefits of membrane switches include:
- Completely sealed surface – easily cleaned and sterilized
- Low Profile – no crevices that can trap contaminants
- A cost-effective alternative – less costly than rubber keypad
assemblies and capacitive touch keypads
- Thin profile – saves valuable space in your product design
- Easy to interface with existing controllers – no special
electronics required, as with touch screens
- Versatile graphic interface – overlays can be screen or digitally
printed with stunning, photo-quality graphic effects
- Protection by design – Easier to protect from UV radiation than
rubber keypads
- Water-resistant designs – meets NEMA 4 and IP 67 specifications
Specification
> Graphic overlay: Autotex PET V200
> Rear adhesive: 3M468
> Matte surface, LCD window, LEDs, embossed button, metal dome,
PET Circuit
| Part | Ordinary Material |
| Graphic Overlay | | Finish | Specification |
| PC | Gloss | 0.175/.25/.35/.5 mm thickness |
| Matt | 0.175/.25/.35/.5 mm thickness |
| PET | Fine Texture | 0.15/.20 mm thickness |
| Valet Texture | 0.15/.20 mm thickness |
| Gloss with Hard Coat | 0.18 mm thickness |
| Rear Adhesive | Paper Double-sided Tape | | 0.10 mm thickness |
| 1.Electrical Properties | Membrane Switch |
| Electrical Level: | 35V(DC), 100mA,1W |
| Contact Resistance: | 10Ω~500 Ω |
| Insulation Resistance: | 100MΩ/100V |
| Dielectrics Voltage-resistance: | 250VRms(50~60Hz 1min) |
| Chattering Time: | ≤ 5ms |
| Life Time: | Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000 |
| Tail Folding: | R>1,180 |
| |
| 2.Mechanical Properties | |
| Operating Force: | Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz) |
| Switch Stroke: | Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm |
| |
| 3.Environmental and Storage Conditions | |
| Operation Temperature: | -40°C ~ +80°C |
| Storage Temperature: | -40°C ~ +80°C |
| Humidity: | 40°C, 90%~95%, 240 hours |
