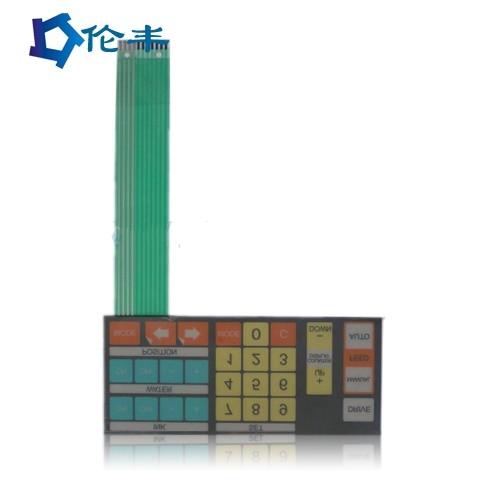

Metal Dome Membrane Switch glossy surface for Industrial Control
Membrane Switch Technical Information
Graphic Overlay – Polyester is usually the material of choice due
to its superior chemical resistance and flex life compared to
polycarbonate. Pannam can either digitally print, screen-print, or
employ a combination of both methods to ensure you get the right
colors, textures and finishes your design requires.
Overlay Adhesive – This adhesive layer bonds the graphic overlay to
the top circuit layer, and is typically an acrylic adhesive.
Top Circuit Layer – This is a 0.005″ – 0.007″ heat stabilized
polyester printed with silver-filled electrically conductive inks
and also dielectric inks.
Circuit Spacer – This layer separates the top circuit from the
bottom circuit so the switch remains normally open until the keypad
is pressed. The circuit spacer is a polyester spacer with adhesive
on both sides.
Lower Circuit Layer – This is a 0.005″ – 0.007″ heat stabilized
polyester printed with silver-filled electrically conductive inks
and also dielectric inks. This layer terminates as a flexible tail
that serves as the interconnect to controller PCBs or other
electronics.
Rigid Support Layer – This optional layer can add structural
integrity to the membrane switch assembly.
Specification
> Graphic overlay: glossy PET PC
> Rear adhesive: 3M 9448
> feature: with tatile dome diameter-8
> color: Screen Printing, Screen Printing, red, yellow, black, white
> connector: ZIF without connector
Applications:
* Medical equipment *Telecommunications apparatus * Military
industries
* Household appliances
* Security systems
* Industrial controls
Our Services
Ensure our goods are the customer's exact requirement, we do
follows:
Proof --Factory's proof will be sent to customer for confirming
before doing sample.
Sample- We provide customer 5-10pcs prototype to testing in
7-10days after order.
Quantity order-- Customer confirmed the prototype, we start to
working strictly according to prototype.
Quality problem--Customer don't satisfied with our quality due to
factory's carelessness, return goods to us, we will make the
replacement for you quickly.
How to control quality?
(1) We process the products strictly based on the raw material
list.
(2) Our many engineer own many years experience and are very
responsible.
(3) Warranty period is one year. If you find some products is bad,
you can tell us, we will give you solutions.
1.Electrical Properties | Membrane Switch |
Electrical Level: | 35V(DC), 100mA,1W |
Contact Resistance: | 10Ω~500 Ω |
Insulation Resistance: | 100MΩ/100V |
Dielectrics Voltage-resistance: | 250VRms(50~60Hz 1min) |
Chattering Time: | ≤ 5ms |
Life Time: | Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000 |
Tail Folding: | R>1,180 |
|
|
2.Mechanical Properties |
|
Operating Force: | Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz) |
Switch Stroke: | Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm |
|
|
3.Environmental and Storage Conditions |
|
Operation Temperature: | -40°C ~ +80°C |
Storage Temperature: | -40°C ~ +80°C |
Humidity: | 40°C, 90%~95%, 240 hours
|
