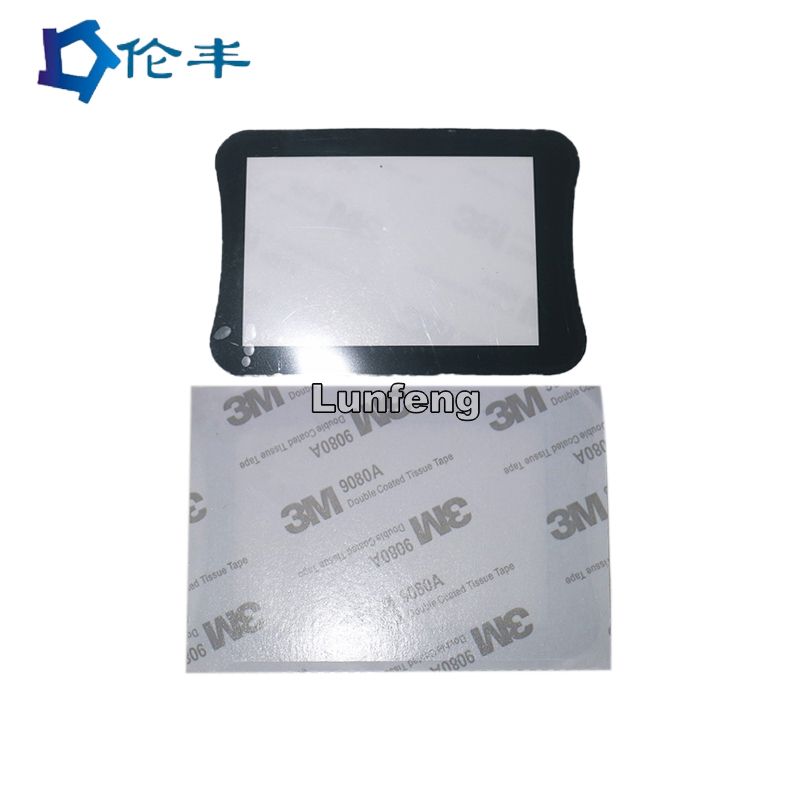

    3M9080 Adhesive PC / PVC / PET Membrane Graphic Overlay With Embossed Keypad

    Ask Lasest Price
    Brand Name : Lunfeng
    Model Number : LFGO308
    Certification : ISO9001:2015
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 500000 Piece/Pieces per Month
    Delivery Time : 7-25 working days, To be negotiated
    • Product Details
    • Company Profile

    3M9080 Adhesive PC / PVC / PET Membrane Graphic Overlay With Embossed Keypad

    Custom PC/PVC/PET Membrane Embossed Keypad Graphic Overlay


    The main properties of custom design electronic membrane keypad
    1. PC /PET as overlay (control panel)
    2. Flat keys or tactile type
    3. Embossed button with good tactile feel
    4. Pre-assemble with or without metal domes
    5. Water-resistant, dust-proof, gas-proof and scratch-resistant
    6. Long life cycle.


    Overlay Materials: The most commonly used base materials for membrane switch keypad are polyester and polycarbonate.
    Rear Adhesive: 3M 467MP, 3M 468MP, etc.
    Standard Tolerances: +/-.010 inch.
    Matching color: Pantone and RAL color matching system.


    Applications:
    Our membrane switches are widely used in:
    Medical Equipment
    Telecommunications apparatus
    Telephone systems
    Household appliances
    Security systems
    Industrial controls


    Company Advantage:
    1) Top managers are experienced in the same field for 13 years.
    2) Professional staff and workers.
    3) Strong R&D cabability
    4) Quick Delivery
    5) Competitive price
    6) Two factories are available for large orders
    7) Expert sales team and good customer service.


    ItemsSilver Printed CircuitCopper Etched FPC Circuit
    MaterialPET (Polyester)Copper
    ConductorPrinted silverCopper
    Contact FingersSilver and CarbonGold plated
    Contact Buttons PadsSilverGold plated
    Life & Reliabilitynormalgood
    Stabilitynormalgood
    ResistancelowVery low
    Costlowhigh
    Lead Time2-3 days7-10 days
    Pitch0.5mm (not suggested), 1.0mm, 1.27mm, 2.54mm0.5mm, 1.0mm, 1.27mm, 2.54mm



    1. Electrical Properties

    Membrane Switch

    Electrical Level:

    35V(DC), 100mA,1W

    Contact Resistance:

    10Ω~500 Ω

    Insulation Resistance:

    100MΩ/100V

    Dielectrics Voltage-resistance:

    250VRms(50~60Hz 1min)

    Chattering Time:

    ≤ 5ms

    Life Time:

    Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000

    Tail Folding:

    R>1,180



    2. Mechanical Properties


    Operating Force:

    Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)

    Switch Stroke:

    Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm



    3. Environmental and Storage Conditions


    Operation Temperature:

    -40°C ~ +80°C

    Storage Temperature:

    -40°C ~ +80°C

    Humidity:

    40°C, 90%~95%, 240 hours



    FAQ:

    Q: Are you a factory or trade company?
    A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.


    Q : How about the MOQ?
    A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.


    Q : How to make an ORDER and QUOTATION?

    A: It is better to provide us the design drawing or samples, we’ll quote and customize the membrane switch/ graphic overlay upon your requests.

    (1) Drawings, photos, requirement, quantity
    (2) Overlay Dimension:
    Material: PET/ PC
    Finish:Matte/ Glossy
    Adhesive:3M467/ 3M468
    Button :Embossed/Flat/Metal/Silicone/Rubber/Gum
    LED :YES/ NO
    Pin: need to check the circuit diagram
    Pitch:2.54mm
    Cable Length:As requirement
    Connector: Female /Male/DoPont Connector
    Hole: Yes/ None


    Q : Can you do the design for us?
    A : Yes, no problem
    There ate many professional engineer having rich experience in graphic overlays& circuit designing.
    Just let us know your ideas and we will help to carry out your ideas into perfect products.
    If you send me your samples, we will design the drawings based on the samples and can revise the graphic of the face.


    Q : Can you copy membrane switch/ graphic overlay samples without file?
    A : Yes, we can clone membrane switch/ graphic overlay according to your samples.


    Q : What is the production time?
    A : The sample time is about 1-7days.The quantity order would take 1-3 weeks.For complicated product should take 1 more week.


    Q : What payment do you accept ?
    A : TT/ Western Union.


    Q : What about the sample policy, For FREE?
    A : (1) Free Samples: Free sample (stock products) can be provided if the customer can pay for the freight.

    (2) Custom Samples: The quotation can be provided if you can send us drawings/ requirements/ quantity.



    Q : .How to control quality?
    A : (1) We process the products strictly based on the raw material list.
    (2) Our many engineer own many years experience and are very responsible.
    (3) Warranty period is one year. If you find some products is bad, you can tell us, we will give you solutions.


    Q : How to guarantee the after sales service?
    A : We will track the production situation of the goods during the whole process,we promise the goods will be shipped to you smoothly. If any problem happened, we will provide the best solution for you.


    Q : What's your main market?
    A : Europe, USA, Canada, Russia, Turkey, Iran, Austrialia, Singapore...


    Q : What's your shipping way ?
    A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
    2. If you have your own forwarder, we can cooperate with them.
