Polyester Custom Made Button Membrane Switch with 2.54mm Connector

Ask Lasest Price
Brand Name :	Lunfeng/Customer's brand
Model Number :	LFZDX005
Certification :	ISO9001:2015, SMETA 4P
Price :	depending on the design
Payment Terms :	TT/telegram transfer
Supply Ability :	500000 Piece/Pieces per Month
Delivery Time :	normally 2-4 weeks, can be discussed

Add to Cart

Product Details
Company Profile

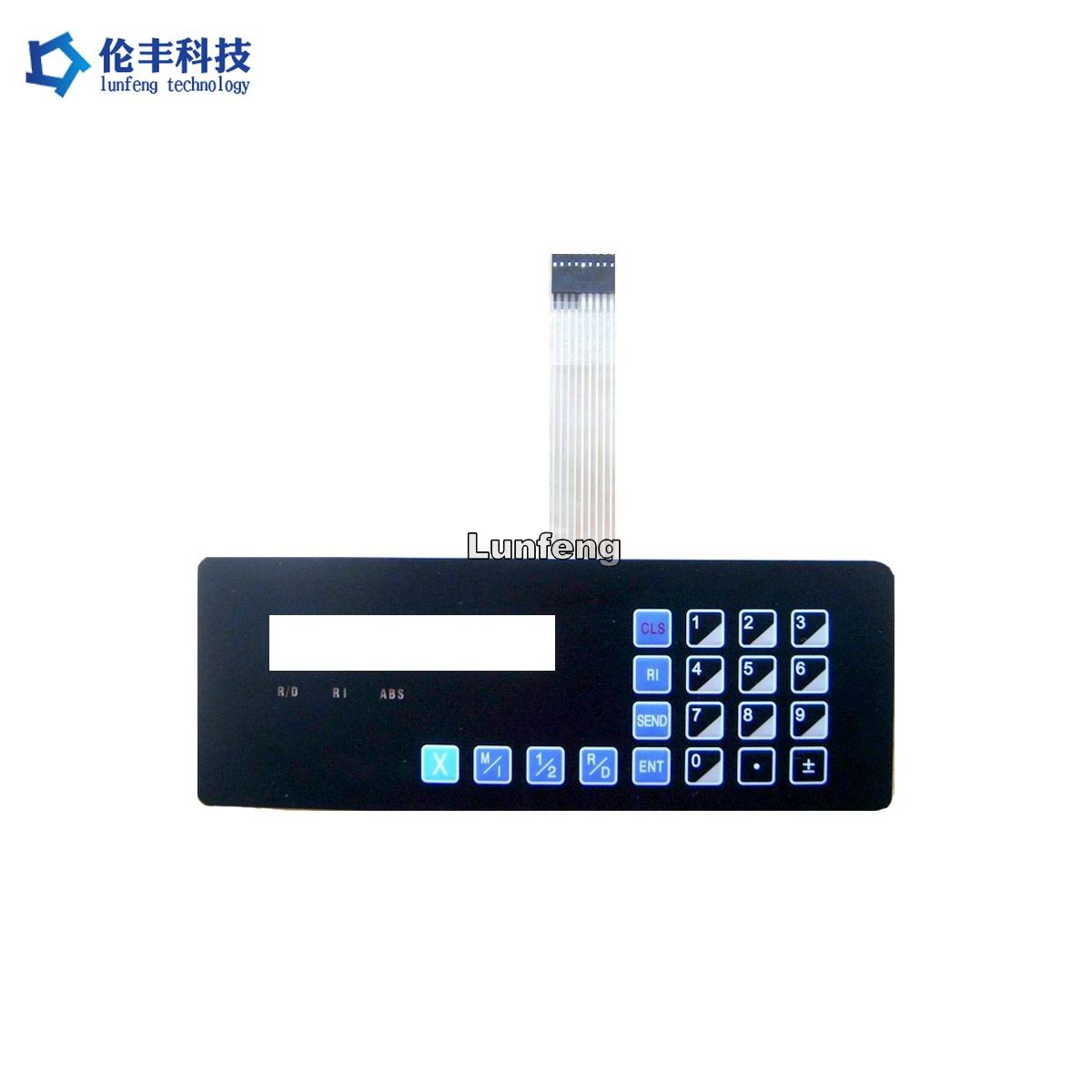

Polyester Custom Made Button Membrane Switch with 2.54mm Connector

Polyester Custom Made Button Membrane Switch

Membrane keypads and membrane switches offer designers of electronic equipment a flexible, customizable user interface which is compact, versatile, reliable and assembly friendly.

Construction

Constructed of layers of polyester (PET) film combined with spacers and adhesive, electrically conductive inks are printed onto the film to form a circuit. Total thickness is typically 1-2mm. Depending on the application and environment, graphic overlay materials can be specified to resist harsh environments such as high moisture, high UV and chemicals. Tactile Feedback of switches can be built into the keypads by insertion of stainless steel tactile discs or embossing of the overlays. Permark can supply either Female Clinch or ZIF connectors

Our Advantage:

We Focus in membrane switch and related items.
Strong R&D capability
Stable in quality
Competitive price
Short Lead time for samples and Mass production
Whole solution design available

Applications:

* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
* Various automtic machine control keypad
* Telecommunication Equipment
* Medical Equipment
* Industrial Equipment
* Household Equipment
* Remote Controller
* Control system

Items	Silver Printed Circuit	Copper Etched FPC Circuit
Material	PET (Polyester)	Copper
Conductor	Printed silver	Copper
Contact Fingers	Silver and Carbon	Gold plated
Contact Buttons Pads	Silver	Gold plated
Life & Reliability	normal	good
Stability	normal	good
Resistance	low	Very low
Cost	low	high
Lead Time	2-3 days	7-10 days
Pitch	0.5mm (not suggested), 1.0mm, 1.27mm, 2.54mm	0.5mm, 1.0mm, 1.27mm, 2.54mm

1. Electrical Properties		Membrane Switch
Electrical Level:		35V(DC), 100mA,1W
Contact Resistance:		10Ω~500 Ω
Insulation Resistance:		100MΩ/100V
Dielectrics Voltage-resistance:		250VRms(50~60Hz 1min)
Chattering Time:		≤ 5ms
Life Time:		Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000
Tail Folding:		R>1,180

2. Mechanical Properties
Operating Force:		Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)
Switch Stroke:		Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm

3. Environmental and Storage Conditions
Operation Temperature:		-40°C ~ +80°C
Storage Temperature:		-40°C ~ +80°C
Humidity:		40°C, 90%~95%, 240 hours

FAQ:

Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.

Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.

Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.

Q4 : What payment do you accept ?
A : TT/ Western Union.

Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.

Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
