    FPC PET Membrane Switch , OEM ODM Membrane Keyboard Switch

    Ask Lasest Price
    Brand Name : Lunfeng/Customer's brand
    Model Number : LFZDX098
    Certification : ISO9001:2015, SMETA 4P
    Price : depending on the design
    Payment Terms : TT/telegram transfer
    Supply Ability : 500000 Piece/Pieces per Month
    Delivery Time : normally 2-4 weeks, can be discussed
    • Product Details
    • Company Profile

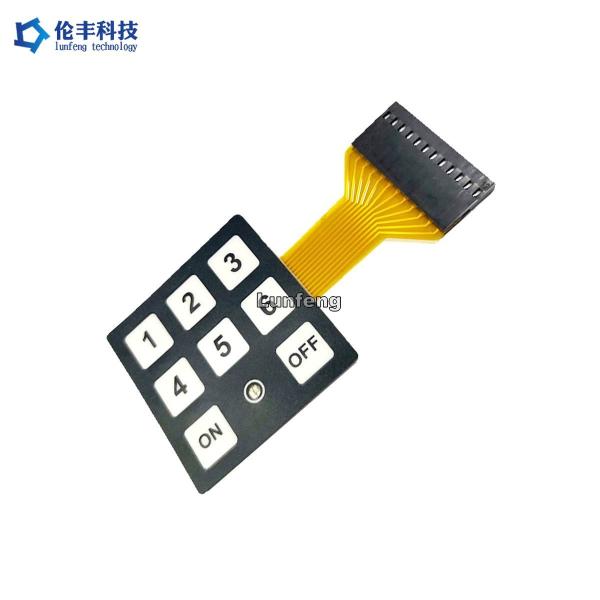

    FPC PET Membrane Switch , OEM ODM Membrane Keyboard Switch

    OEM ODM FPC Membrane Switch Keypad, Membrane Keyboard Switch


    • LUNFENG membrane switches are produced to the highest standard by our skilled operators and in compliance with ISO 9001 Approval, which ensures your membranes are fully functional and to the highest standard. All membrane switches undergo 100% final test inspection to ensure error-free operation and that the buttons last as long as the machine they control.


    • Key features

      Completely sealed surface, which makes it easy to clean
      A cost-effective solution
      Thin profile, which saves useful space in your product design
      Water-resistant
      Surface illumination of the lettering on the keyboard



    Applications:

    • home appliances and device
    • Security Protection systems with Cipher Code
    • Various industry control keypad panel
    • consumer electronics and 3C item
    • Thrapy medical system and device
    • Various automtic machine control keypad
    • Telecommunication Equipment
    • Medical Equipment
    • Industrial Equipment
    • Household Equipment
    • Remote Controller
    • Control system

    Our Advantage:

    • We Focus in membrane switch and related items.
    • Strong R&D capability
    • Stable in quality
    • Competitive price
    • Short Lead time for samples and Mass production
    • Whole solution design available
    ItemsSilver Printed CircuitCopper Etched FPC Circuit
    MaterialPET (Polyester)Copper
    ConductorPrinted silverCopper
    Contact FingersSilver and CarbonGold plated
    Contact Buttons PadsSilverGold plated
    Life & Reliabilitynormalgood
    Stabilitynormalgood
    ResistancelowVery low
    Costlowhigh
    Lead Time2-3 days7-10 days
    Pitch

    0.5mm (not suggested), 1.0mm,1.27mm, 2.54mm

    0.5mm, 1.0mm,1.27mm, 2.54mm


    1. Electrical PropertiesMembrane Switch
    Electrical Level:35V(DC), 100mA,1W
    Contact Resistance:10Ω~500 Ω
    Insulation Resistance:100MΩ/100V
    Dielectrics Voltage-resistance:250VRms(50~60Hz 1min)
    Chattering Time:≤ 5ms
    Life Time:Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000
    Tail Folding:R>1,180
    2. Mechanical Properties
    Operating Force:Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)
    Switch Stroke:Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm
    3. Environmental and Storage Conditions
    Operation Temperature:-40°C ~ +80°C
    Storage Temperature:-40°C ~ +80°C
    Humidity:40°C, 90%~95%, 240 hours


    FAQ:


    Q1: Are you a factory or trade company?
    A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.

    Q2 : Is my switch file safe if I send it to you for manufacturing?
    A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
    your permission. NDA is acceptable.


    Q3 : Can you copy membrane switch/ graphic overlay samples without file?
    A : Yes, we can clone membrane switch/ graphic overlay according to your samples.

    Q4 : What payment do you accept ?
    A : TT/ Western Union.

    Q5 : What's your shipping way ?
    A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
    2. If you have your own forwarder, we can cooperate with them.

    Q6 : How about the MOQ?
    A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.

    Q7 : What's your main market?
    A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
